DIY Dividing Head Chuck with step motor for Milling Machine

DIY Dividing 3D Printer File Free Download

Download “Dividing Head Chuck Click here to Free Download” Dividing-Head-Chuck-Click-here-to-Free-Download.zip – Downloaded 302 times – 76.71 KB

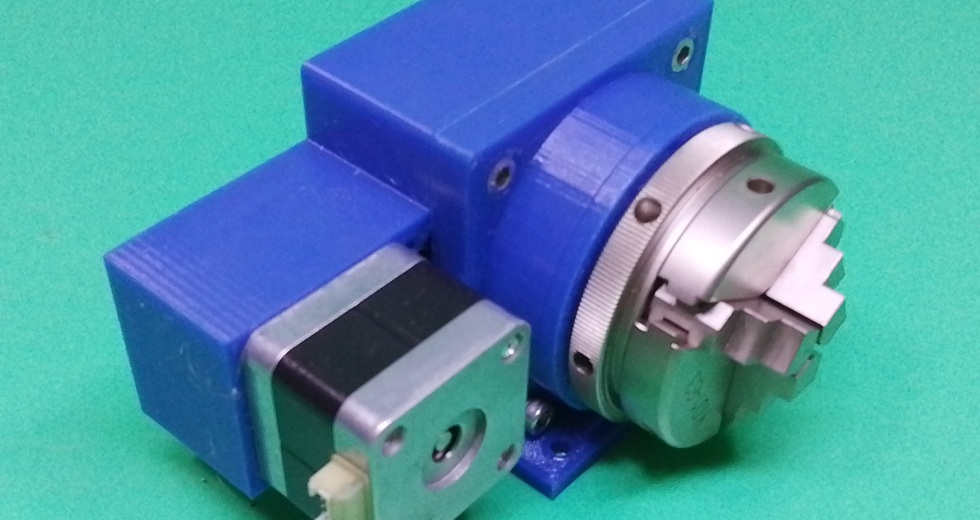

Dividing head mini that I made from an old lathe chuck mini and my 3D Printer Not the ultimate dream, but it nice works with step motor.
This is a simple to use dividing head, mounted on a plate for clamping onto a milling table, it is quick to use and compact.

Materials.
Download “Dividing Head Chuck Click here to Free Download” Dividing-Head-Chuck-Click-here-to-Free-Download.zip – Downloaded 302 times – 76.71 KB
1 pcs Lathe Chuck K01 63 mm Self-Centering 3 Jaw.
1 pcs Chuck Connecting Rod M14*1.
01 pcs 6000-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 10mm I.D, 26mm O.D.
1 pcs Bearing 6201ZZ Single Row Deep Groove Radial Ball Bearing, Normal Clearance, Steel Cage, 12 mm Bore ID, 32 mm OD, 10 mm Width, Double Shielded.
1 pcs NEMA17 2phase DC Motor, Electric Motor, Stepper Motor for Medical Machine.
01 pcs GT2 Idler Pulley Timing Belt Pulley Wheel Aluminum 5mm Bore 16 6 teeth for 3D Printer.
1 pcs Timing Belt GT2 Power Drive Belt 240 mm Closed Rubber Belts Pulley CNC 3D.
4 pcs M5 x 50mm Hex Socket Head Cap Screws Stainless Steel for Lathe Chuck.
2 pcs M5 x 70mm Hex Socket Head Cap Screws Stainless Steel for Lathe Chuck.
2 pcs M3 x 50mm Hex Socket Head Cap Screws Stainless Steel for step motor.
